Hot Selling Shear for Light Mix Scrap
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description

Features

  • Hydraulic drive,manual valve operation,or automatic running by remote control induction
    It makes dense bales also shears the scraps.
    It may compress and cuts big size scraps with its huge feeding box .
    Capacity is between 5 to 30 ton /hour.
    No-contact sensors to avoid re-calibration.

Structure

  • Strong Body for Heavy Duty
  • Original Hardox anti-wear plates
  • High quality heavy duty cylinders (Hardened and chrom-coated piston rots ,  speacial honed pipes)
  • The best quality brands are used in hydraulic and electronic parts
  • Hydraulic unit design producing high force with low consumption

List of the materials to process

  • Fe, Al, Cu, Cr-Ni Scraps
  • Ferrous and non-ferrous
  • Aluminium Extrusions
  • Sheet and plates
  • Mixed Scrap

List of the factories may need

  • Scrap Yards
  • Casting Plants

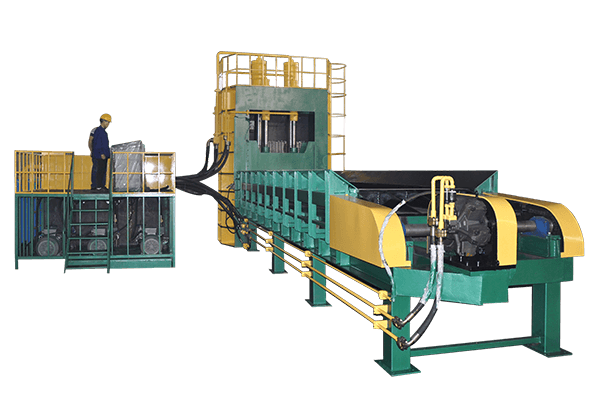

Q91 Heavy-duty scrap shear

Model

(ton)
Max.Cutting Force

(mm)
Press Box Size

(mm)
Blade Length

(t/h)
Production Rate

(tim/min)
Cutting Frequency

(KW)
Main Motor

Q91Y-3150W

315

5000X1500X700

1500

2-5

2-3

2X30KW

Q91Y-4000W

400

6000X1600X700

1600

3-6

2-3

3X30KW/2X45KW

Q91Y-5000W

500

7000X1600X800

1600

4-8

2-3

4X37KW/4X45KW

Q91Y-6300W

630

8000X1800X900

1800

6-12

2.5-3

5X37KW/5X45KW

Q91Y-8000W

800

8000X2000X900

2000

10-15

2.5-3

6X37KW/6X45KW

Q91Y-1000T

1000

10000X2000X1100

2000

15-25

2.5-3

7X37KW/7X45KW

Q91Y-1250T

1250

10000X2000X1200

2000

20-30

2.5-3

8X37KW/8X45KW

Technical Specifications

Feature

Value

Model

Q91Y-5000W

Feed Box Size(mm)

7000X1600X800

Blade Length(mm)

1600

Cutting Frequency(time/min)

2-3

Capacity(T/H)

4-8

Eletric Motor Power (KW)

4X37/4X45

Scene
  •
  •
  •
  •
